- VIENE ACTUALIZADA DE FABRICA PARA LA SERIE RYZEN 5000.
- Chipset: AMD X570 Chipset
- Memory:
- 4 DDR4 memory slots, support up to 128GB (depending on the processor)1
– 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
– 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE - Dual channel memory architecture
- Supports non-ECC UDIMM memory
- ports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- 4 DDR4 memory slots, support up to 128GB (depending on the processor)1
- Expansion Slots:
- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
– 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
– 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
– Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3 x PCIe 3.0 x1 slots1
* PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. The speeds may vary for different devices
- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- Onboard Graphics:
- 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz
- Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors
- Maximum shared memory of 2048 MB
- Multi-Graphics:
- Supports 2-Way AMD CrossFire Technology
- Storage:
-
6 x SATA 6Gb/s ports
-
2 x M.2 slot (Key M)
– M2_1 slot (from AMD Processor)
*Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
*Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
*Supports 2242/ 2260/ 2280/ 22110 storage devices
– M2_2 slot (from AMD X570 Chipset)
*Supports PCIe 3.0 x4 and SATA 6Gb/s
*Supports 2242/ 2260/ 2280 storage devices
-
- RAID: AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
- USB:
- AMD X570 Chipset
– 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) - AMD Processor
– 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
– 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
- AMD X570 Chipset
- Audio:
- Realtek ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
- LAN:
- 1 x Realtek 8111H Gigabit LAN Controller
- Internal Connectors:
-
1 x 24-pin ATX main power connector
-
1 x 8-pin ATX 12V power connector
-
1 x 4-pin ATX 12V power connector
-
6 x SATA 6Gb/s connectors
-
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
-
1 x 4-pin CPU fan connector
-
1 x 4-pin water-pump connector
-
4 x 4-pin system fan connectors
-
1 x Front panel audio connector
-
2 x System panel connectors
-
1 x TPM module connector
-
1 x Serial port connector
-
1 x Clear CMOS jumper
-
1 x Chassis Intrusion connector
-
2 x 4-pin RGB LED connectors
-
2 x 3-pin RAINBOW LED connectors
-
4 x EZ Debug LEDs
-

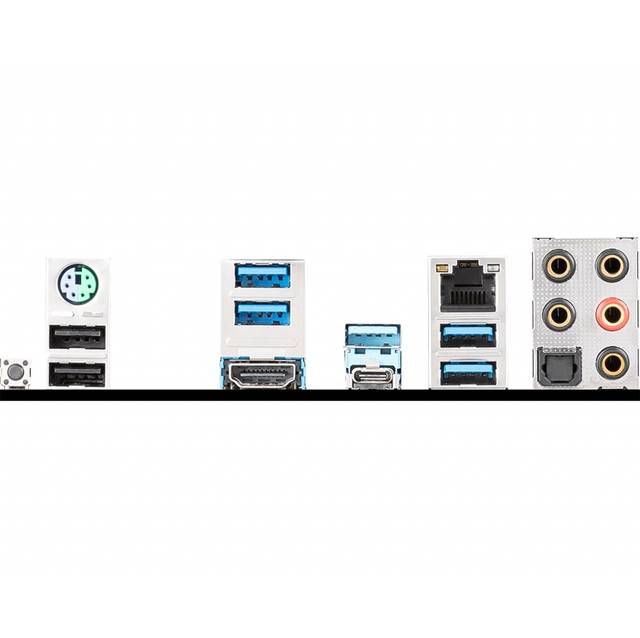

- Back Paner Ports:
-
Keyboard / Mouse
-
USB 3.2 Gen1 Type-A
-
LAN Port
-
HD Audio Connectors
-
Flash BIOS Button
-
USB 2.0 Ports
-
HDMI Port
-
USB 3.2 Gen2 Ports (Type-A + C)
-
USB 3.2 Gen1 Type-A Ports
-
Optical S/PDIF out
-
- Dimension: 12 in. x 9.6 in. (30.4 cm x 24.3 cm); ATX Form Factor
- Mounting: 9 mounting holes
- Operating System: Support for Windows 10 64-bit
