80 PLUS Standard Certified
120 mm HDB Fan
DC-to-DC + LLC Circuit Design
Single +12V Rail
Flat Black Cables

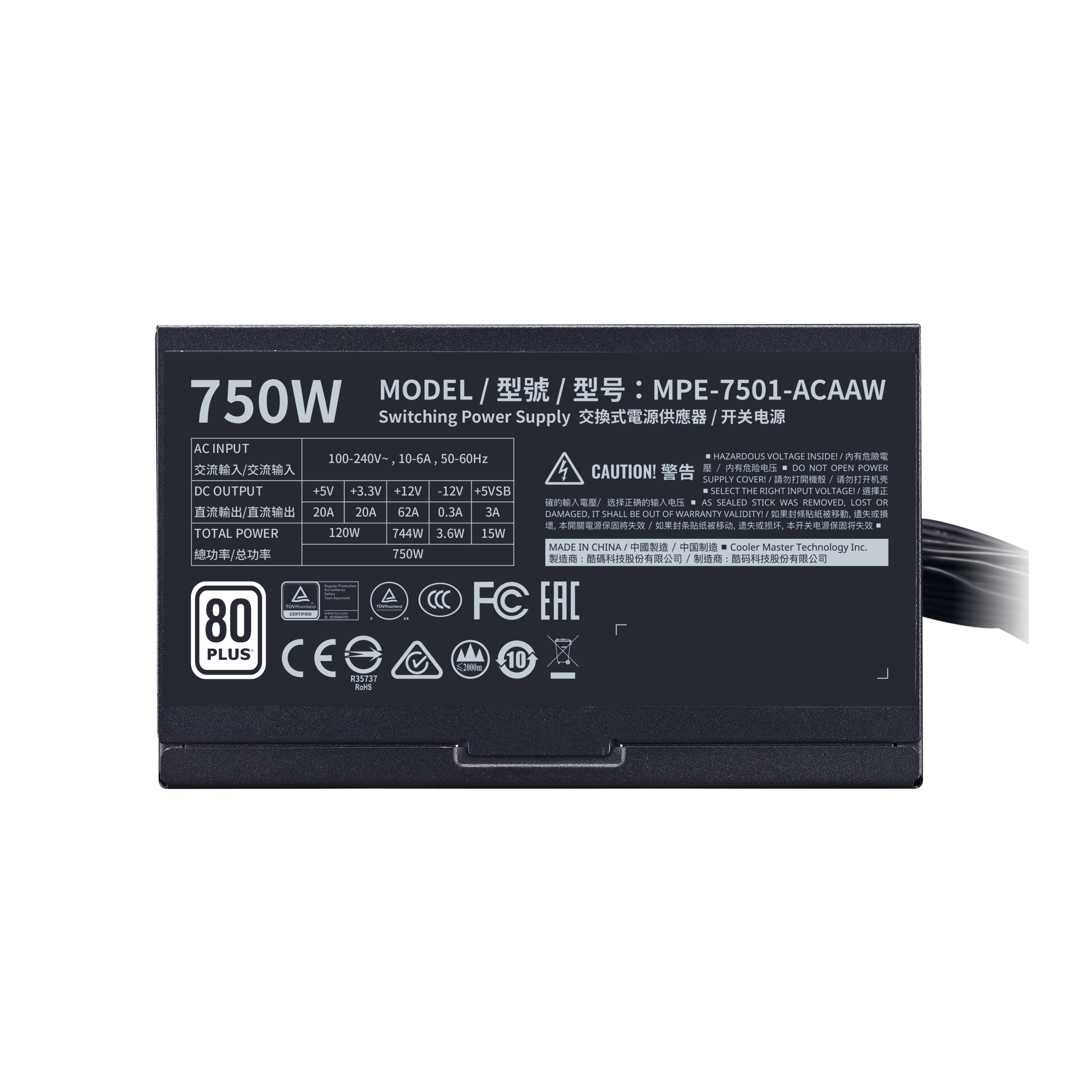

MODEL MPE-7501-ACAAW

ATX VERSION ATX 12V V2.52

PFC Active PFC

INPUT VOLTAGE 100-240V

FREQUENCY 50-60Hz

DIMENSIONS (L X W X H)140 x 150 x 86 mm

FAN SIZE120mm

FAN BEARING HDB

FAN SPEED 2400 RPM

NOISE LEVEL @ 20%11.69 dBA

NOISE LEVEL @ 50%21.6 dBA

NOISE LEVEL @ 100%40.2 dBA

EFFICIENCY 80% Typically Load

80 PLUS RATING 80 PLUS Standard

ERP 2014 LOT 3 Yes

OPERATING TEMPERATURE 40°C

POWER GOOD SIGNAL 100 – 500 ms

HOLD UP TIME>14ms at 100% Full Load@230Vac

MTBF>100,000 Hours

PROTECTIONS OVP, OPP, OTP, SCP, UVP

REGULATORY CB, TUV, cTUVus, CE, FCC, CCC, EAC, RCM, BSMI, KC

ATX 24-PIN CONNECTORS 1

EPS 4+4 PIN CONNECTORS1

EPS 8 PIN CONNECTOR1

SATA CONNECTORS 6

PERIPHERAL 4-PIN CONNECTORS 3

PCI-E 6+2 PIN CONNECTORS 4

80 PLUS Standard

MODULAR Non Modular

WATTAGE 500 to 750W

SERIES MWE White Series
