80 PLUS Standard 230V EU Certified
120mm HDB Fan
DC-to-DC Technology
Single +12V Rail
Flat Black Cables

The MWE White offers 80 Plus Standard certification,
guaranteeing an average efficiency of 85% at typical load.
The DC-to-DC + LLC circuit design allows the unit to convert
power from the single +12V rail reliably, efficiently, and
safely for a better overall user experience. The thermally
sensitive HDB fan cools based on temperature, adjusting
constantly as the system’s needs change. Not only does this
waste less power but it also creates a quieter overall user
experience by not running the fan at maximum noise level
when not needed. For a great entry level computing
experience, choose the MWE White.
FEATURES SPECIFICATIONS
Single +12V Rail : All power comes from a single +12V source,
ensuring consistent output through all connected cables.
120mm HDB Fan : The 120mm HDB fan employs responsive
fanspeed control, limiting noise to specific cooling requirements
during use.
DC-to-DC Technology : The DC-to-DC + LLC circuit design offers
reliable, stable output to all connected components.
Silent Mode : The fan will not spin under lower loads or in standby
mode, ensuring a quiet user experience during casual operation.
Flat Black Cables : The flat cables take up less space and are easier
to manipulate within the chassis.
Nett Weight 1.464 kg / 3.228 lb
Gross Weight 1.862 kg / 4.105 lb
Package Dimensions 245 x 190 x 110mm (9.65 x 7.48 x 4.33″)
Carton Dimensions 570 x 260 x 215mm (22.44 x 10.24 x 8.46″)
Unit / Carton 5 pcs
Carton / Pallet 32 pcs

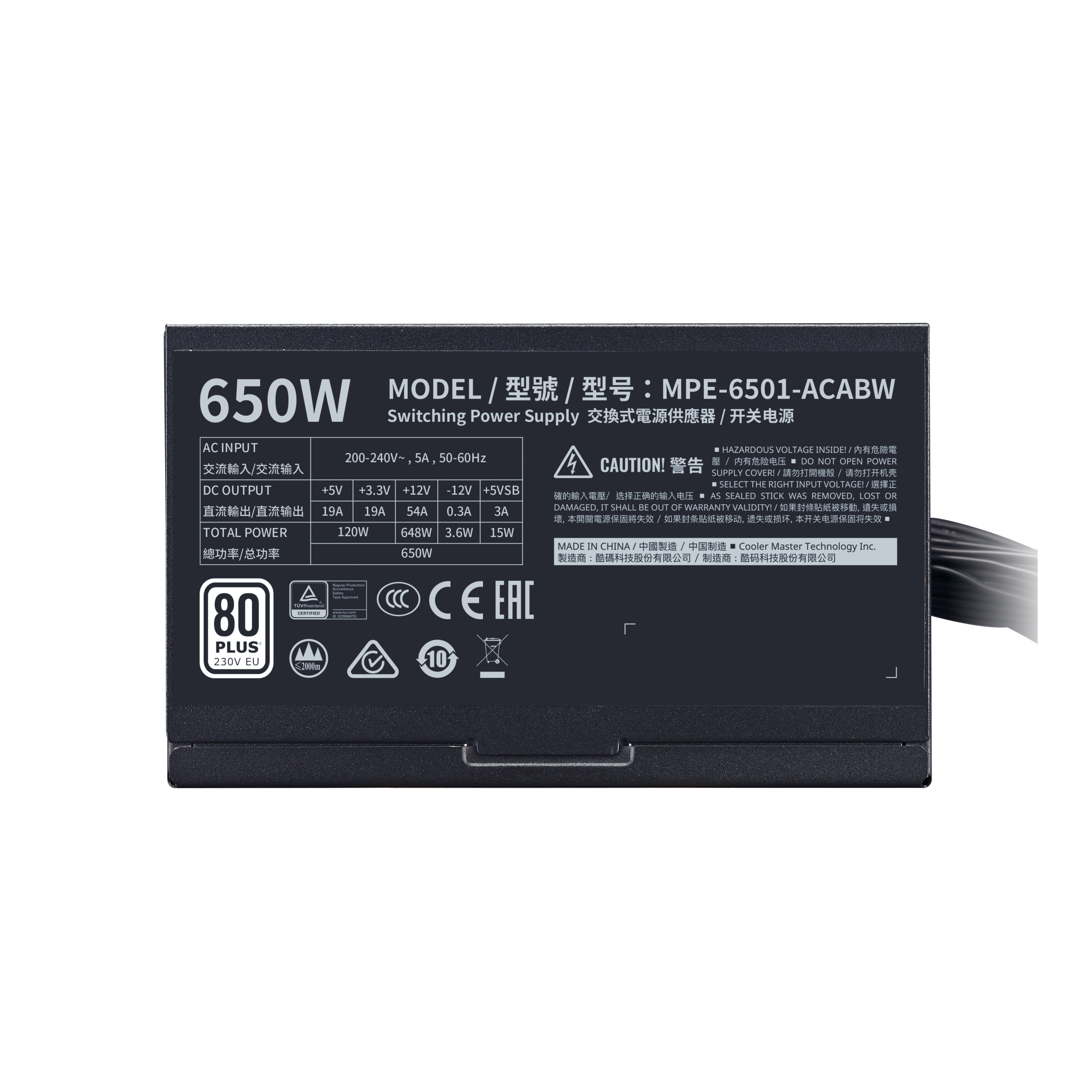

Product Name MWE 650 White 230V V2
Item Code MPE-6501-ACABW
ATX Version Intel ATX 12V V2.52
PFC Active PFC
Input Voltage 200-240V
Input Current 5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86mm
Fan Size 120
Fan Bearing HDB
Fan Speed 2400 RPM
Noise @ 20% 16.54dB-A
Noise @ 50% 26.5dB-A
Noise @ 100% 42.5dB-A
Efficiency 85% Typically
80 PLUS Rating 80 PLUS Standard 230V EU
ErP 2014 Lot 3 Yes
Operating Temperature 40°C
Power Good Signal 100 – 500ms
Hold Up Time >14ms at 100% full load@230Vac
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors ATX 24 Pin x1
EPS 4+4 Pin x1
EPS 8 Pin x1
SATA x6
Peripheral 4 Pin x3
PCI-e 6+2 Pin x4
AC INPUT 200-240V~ 5A 50-60Hz
