80 PLUS GOLD CERTIFIED
120MM LDB FAN
ADVANCED CIRCUITRY
FULLY MODULAR CABLING

SERIES MWE Gold Series

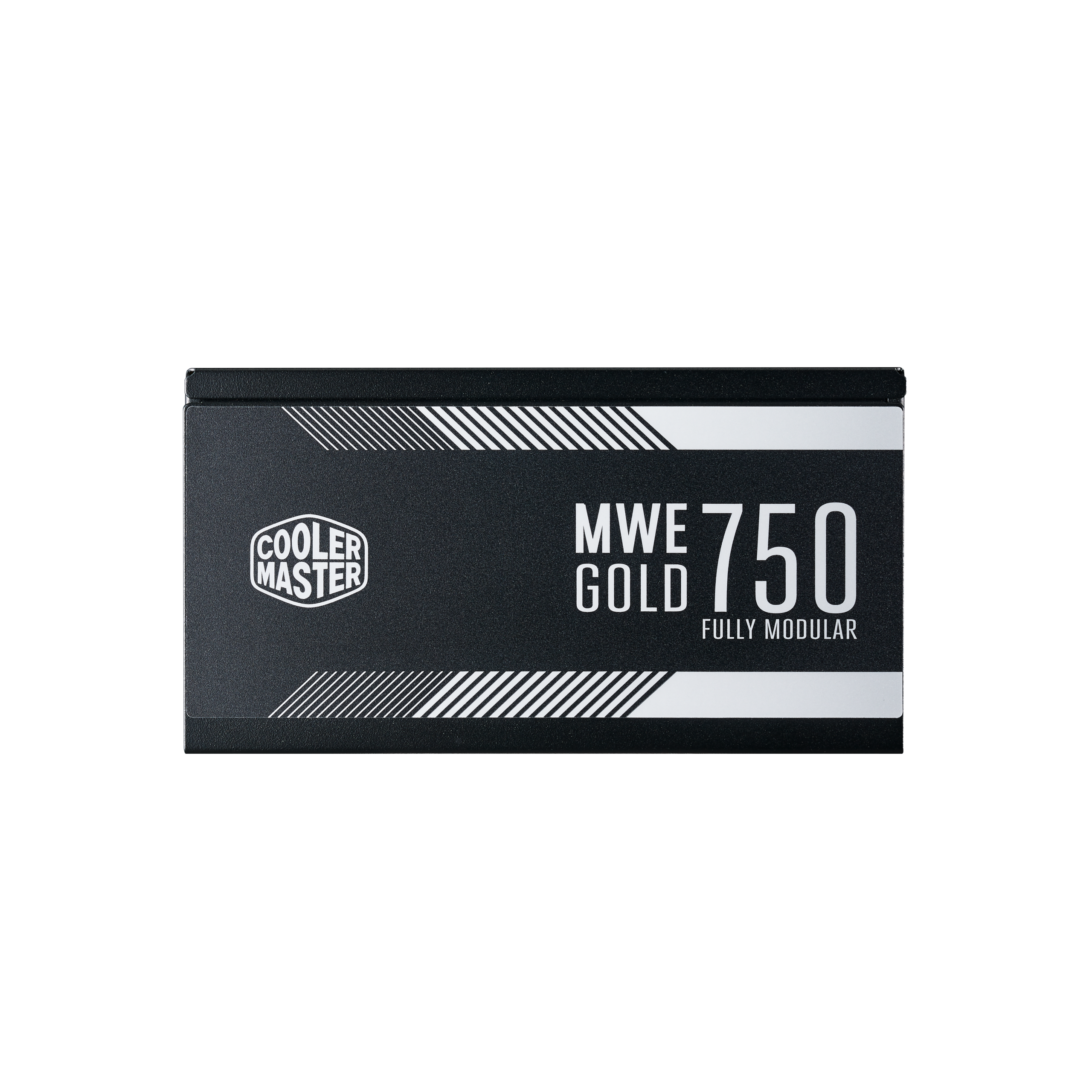

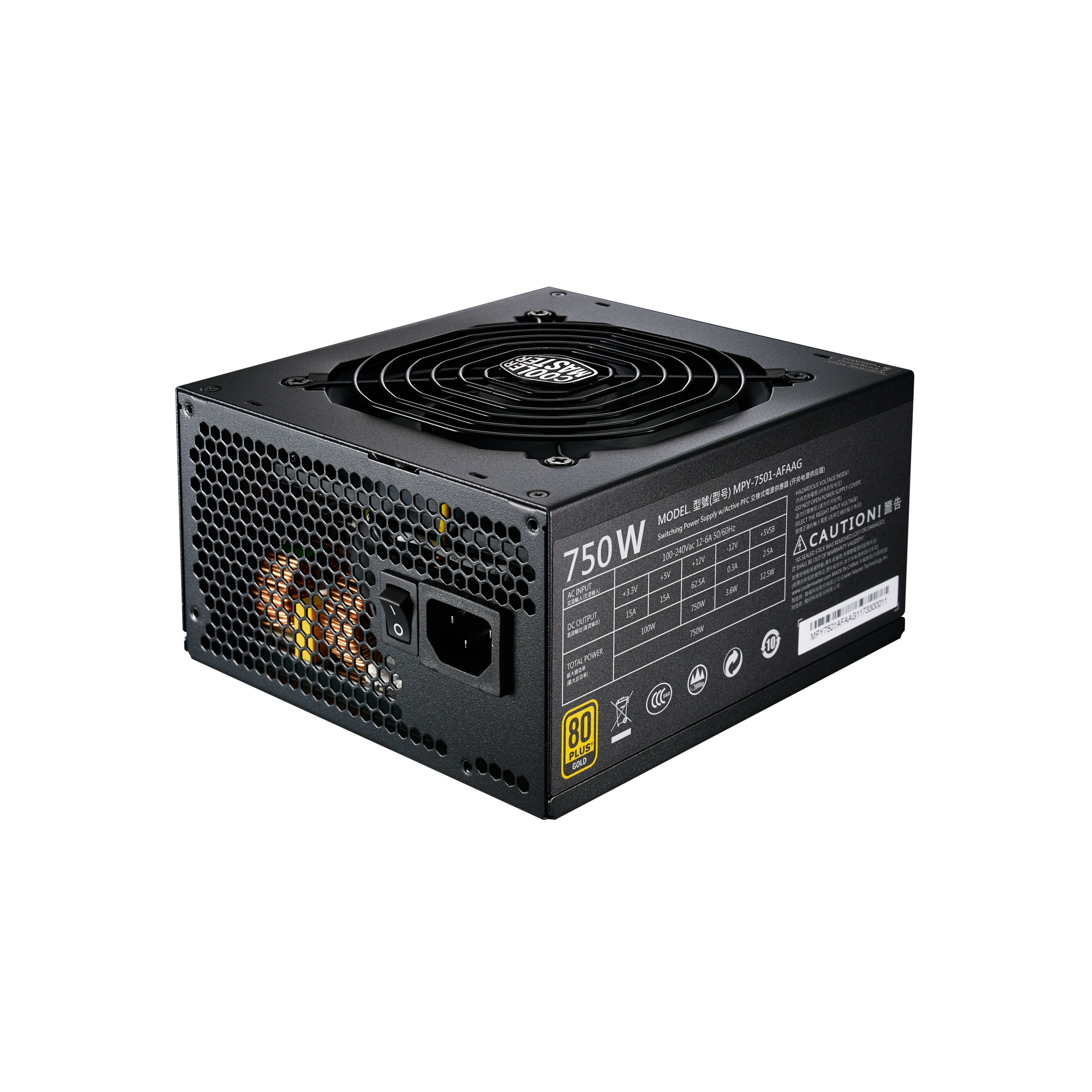

PRODUCT NAME MWE Gold 750 Full Modular

MODULAR Full Modular

MODEL MPY-7501-AFAAG

ATX VERSION ATX 12V V2.31

PFCActive PFC (>0.95 typical)

INPUT VOLTAGE 100-240V

INPUT CURRENT 12-6A

INPUT FREQUENCY 50/60Hz

DIMENSIONS (L X W X H)160 x 150 x 86 mm

FAN SIZE120mm

FAN BEARING LDB

POWER GOOD SIGNAL100 – 500 ms

HOLD UP TIME>14ms at 100% load

EFFICIENCY90% Typically

ERP 2013 LOT 6 Yes

MTBF>100,000 Hours

OPERATING TEMPERATURE0 -45°C

PROTECTIONS OVP, OPP, UVP, SCP, OTP, OCP

REGULATORY CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

MB 24-PIN CONNECTORS 1

CPU 12V 4+4 PIN CONNECTORS 1

CPU 12V 8 PIN CONNECTORS 1 (for updated models)

SATA CONNECTORS 8

PERIPHERAL 4-PIN CONNECTORS 6

FDD CABLE 4-PIN CONNECTORS 1

PCI-E 6+2 PIN CONNECTORS 4

80 PLUS Gold

WATTAGE 500 to 750W
