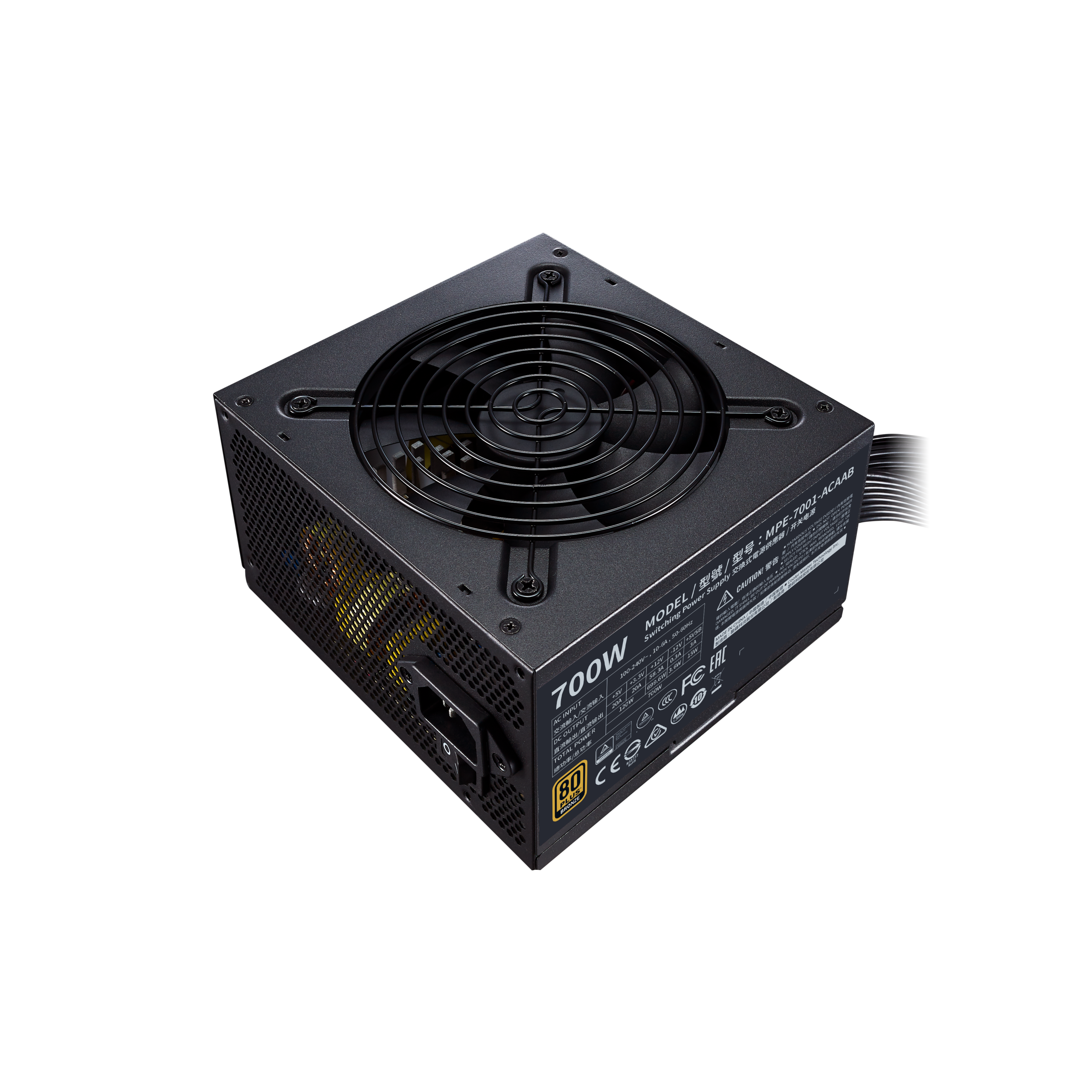

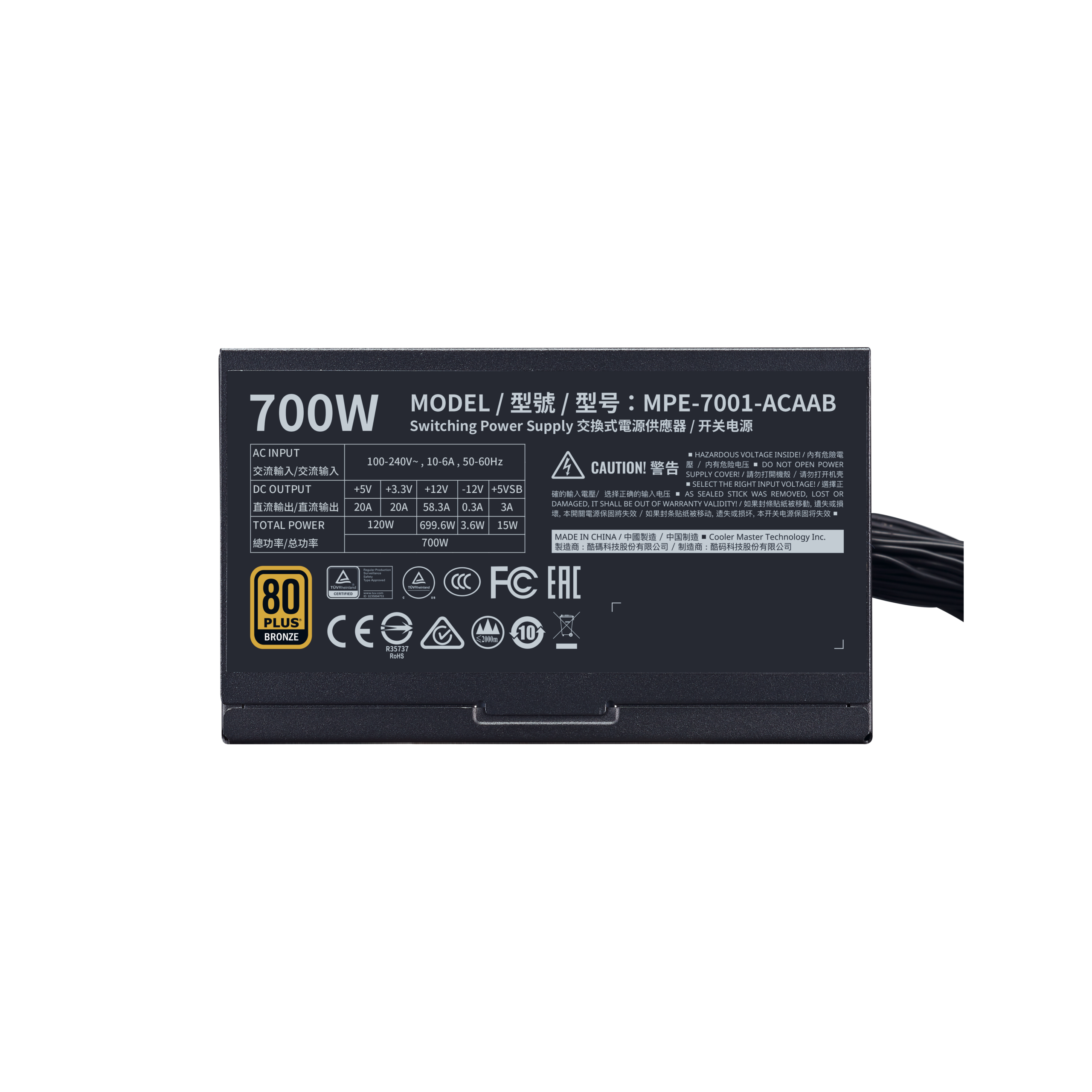

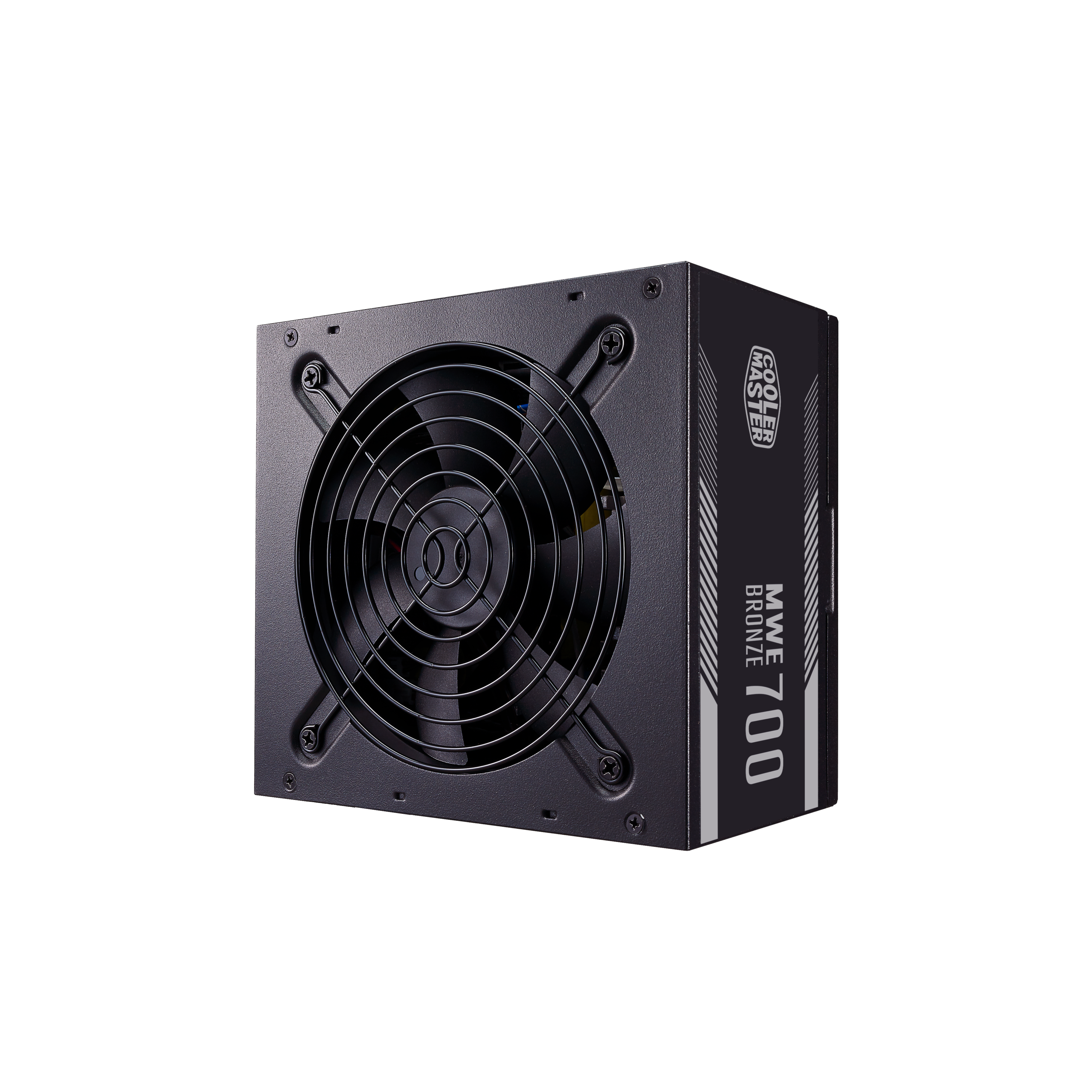

MWE 700 Bronze – V2
80 PLUS Bronze Certified Power Supply
DC-to-DC Technology
120mm HDB Fan
80 PLUS Bronze Efficiency
Flat, Black Cables
Model MPE-7001-ACAAB
ATX VersionATX 12V V2.52
PFC Active PFC
Input Voltage 100-240V
Input Current 10-6A
Input Frequency 50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm
Fan Size120mm
Fan Bearing HDB
Fan Speed 2400 RPM
Noise Level @ 20% 11.06 dBA
Noise Level @ 50%20.0 dBA
Noise Level @ 100%38.3 dBA
Efficiency85% Typically
80 PLUS Rating 80 PLUS Bronze
ErP 2014 Lot 3 Yes
Operating Temperature 40°C
Power Good Signal100 – 500 ms
Hold Up Time >18ms at 100% Full Load@230Vac
MTBF>100,000 Hours
Protections OVP, OPP, SCP, UVP, OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 8
Peripheral 4-Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
80 Plus Bronze
Modular Non Modular
Wattage 500 to 750W
Series MWE Bronze Series
