DC-to-DC Technology
120mm HDB Fan
80 PLUS Bronze Efficiency
Flat, Black Cables

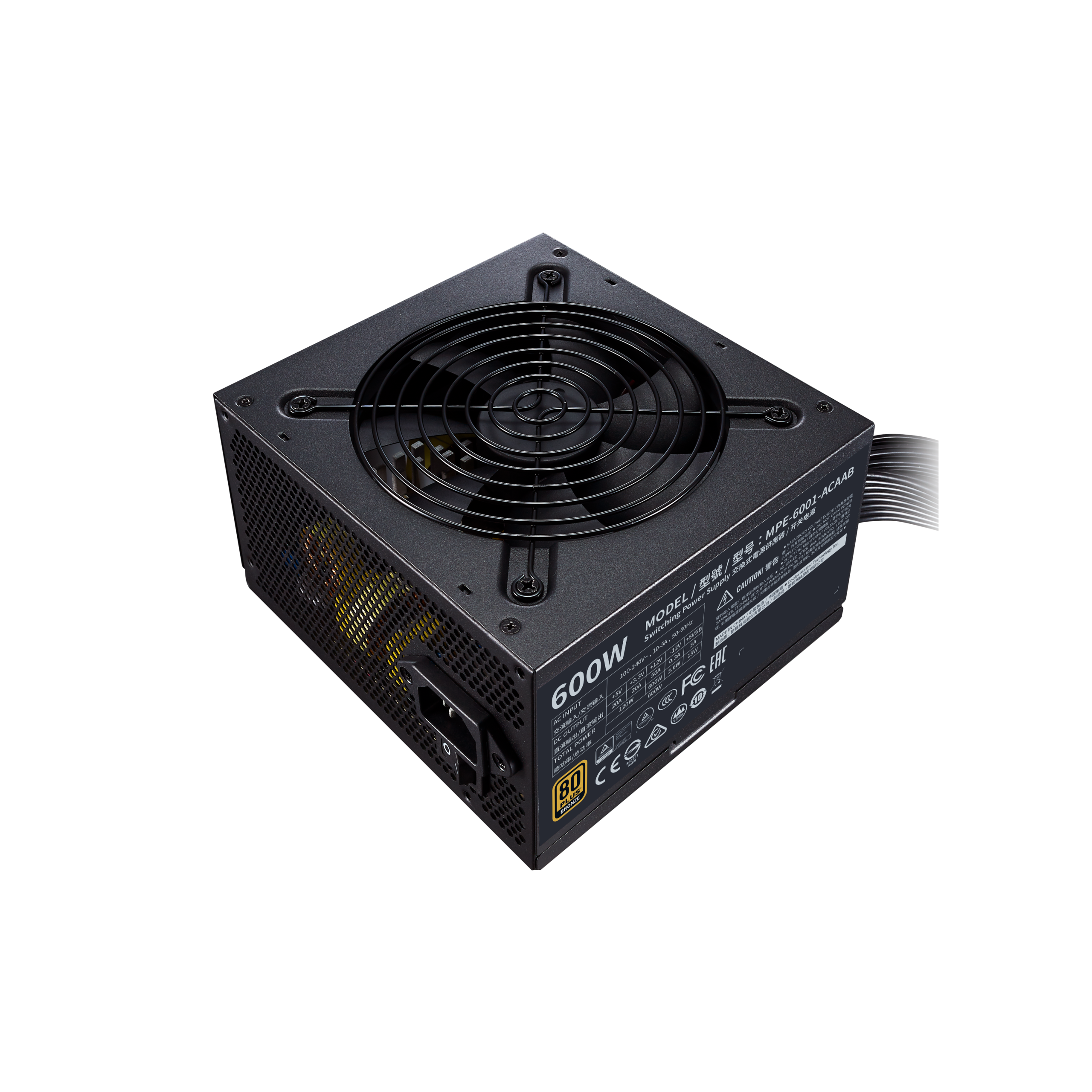

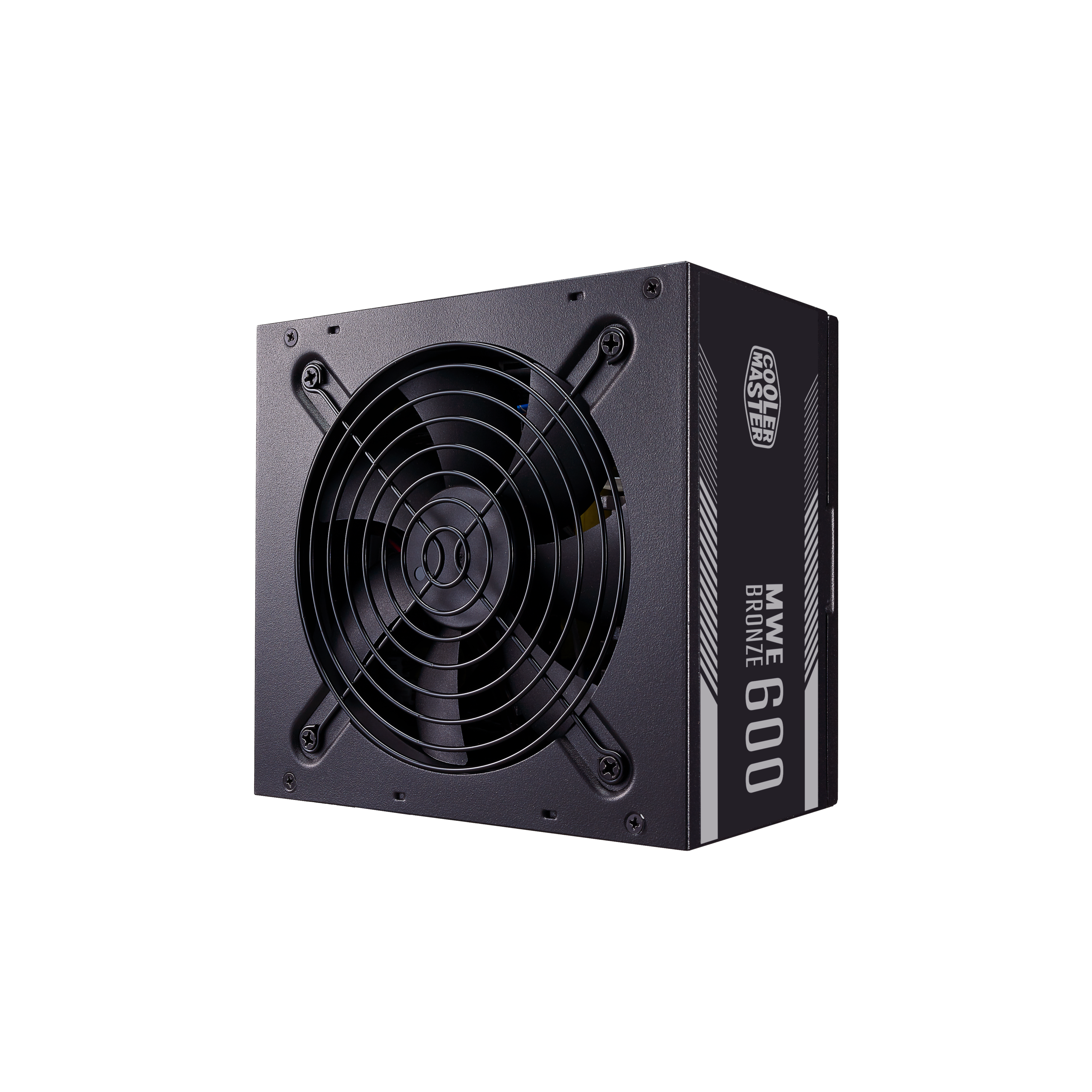

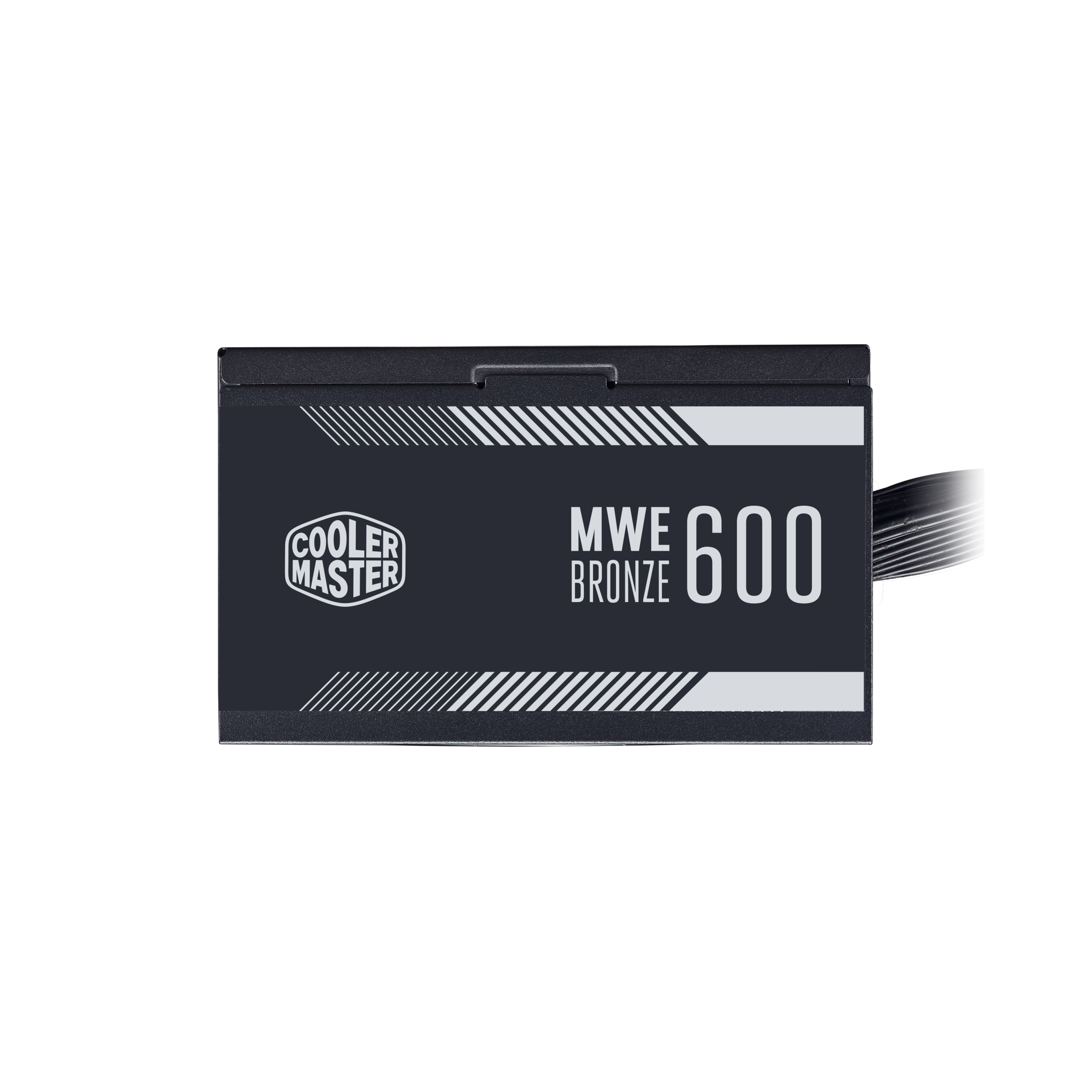

MODEL MPE-6001-ACAAB

ATX VERSION ATX 12V V2.52

PFC Active

PFCINPUT VOLTAGE 100-240V

INPUT CURRENT 10-5A

INPUT FREQUENCY 50-60Hz

DIMENSIONS (L X W X H)140 x 150 x 86 mm

FAN SIZE 120mm

FAN BEARING HDB

FAN SPEED2400 RPM

NOISE LEVEL @ 20%11.65 dBA

NOISE LEVEL @ 50%13.9 dBA

NOISE LEVEL @ 100%34.9 dBA

EFFICIENCY 85% Typically 80 PLUS

RATING8 0 PLUS Bronze

OPERATING TEMPERATURE 40°CPOWER

GOOD SIGNAL100 – 500 ms

HOLD UP TIME>18ms at 100%

Full Load@230Vac

MTBF>100,000 Hours

PROTECTIONS OVP, OPP, SCP, UVP, OTP

REGULATORY CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

ATX 24-PIN CONNECTORS 1

EPS 4+4 PIN CONNECTORS 1

EPS 8 PIN CONNECTOR 1

SATA CONNECTORS 6

PERIPHERAL 4-PIN

CONNECTORS 4 PCI-E 6+2 PIN

CONNECTORS 2

80 PLUS Bronze

MODULAR Non Modular

WATTAGE 500 to 750W

SERIESMWE Bronze Series
