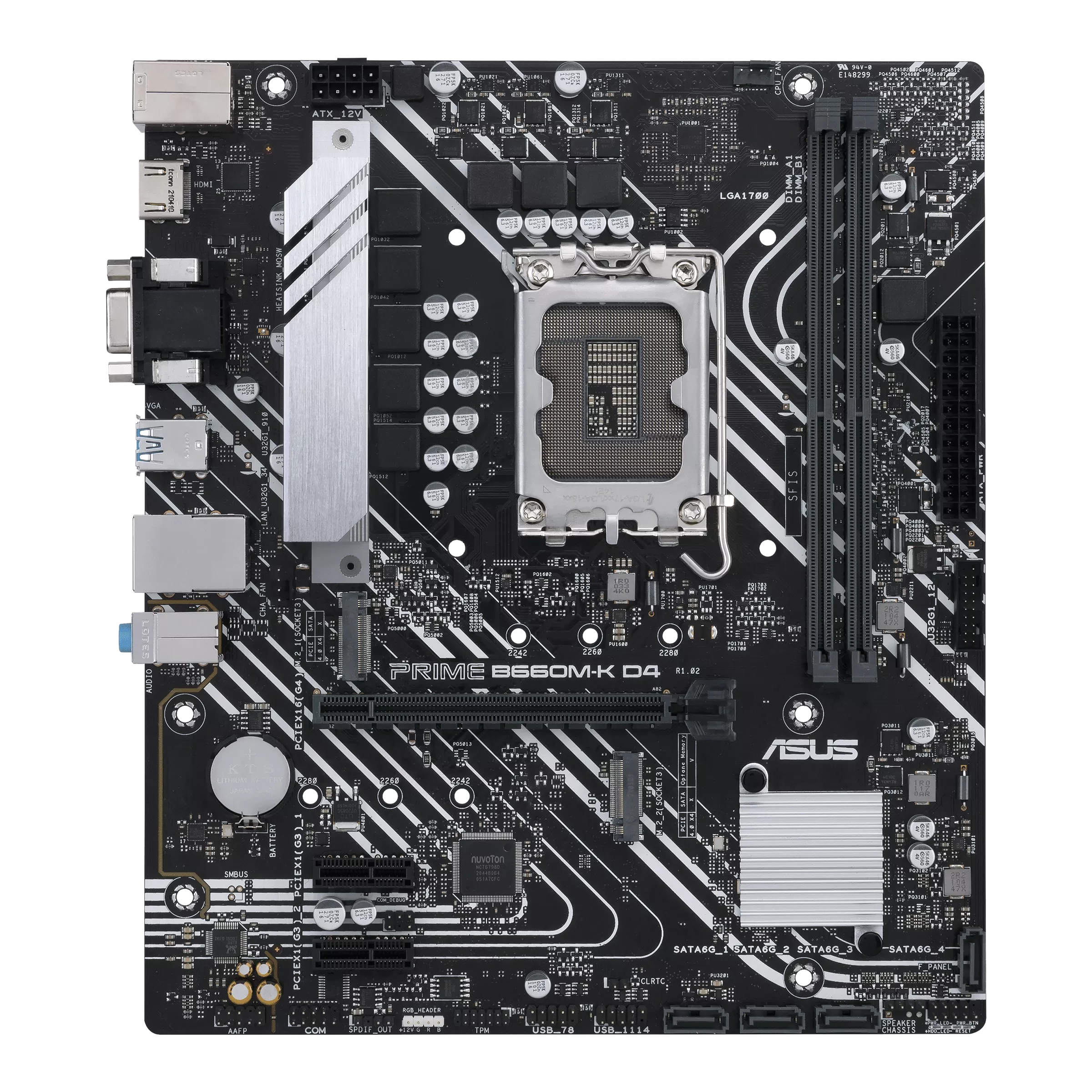

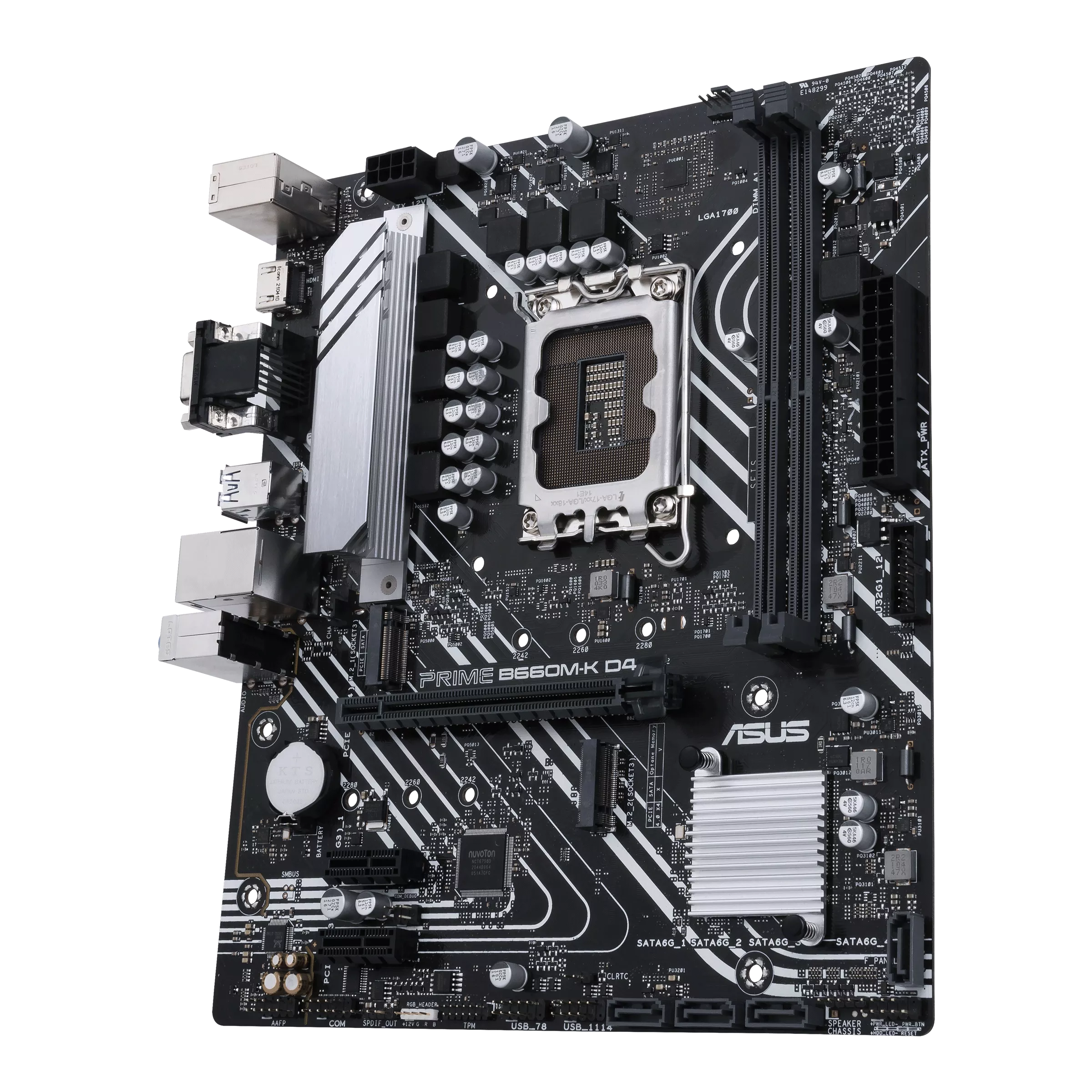

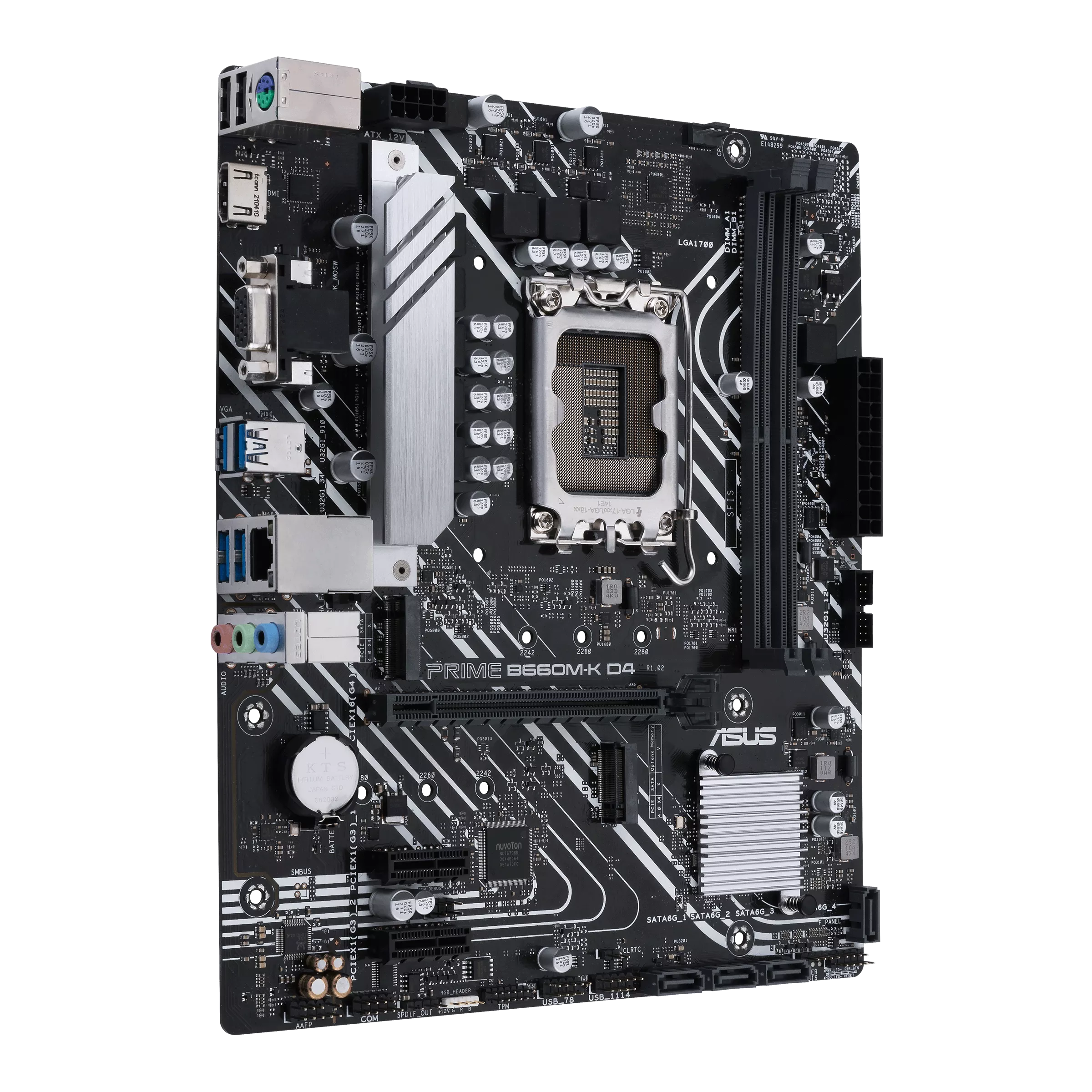

ASUS PRIME B660M-K D4 -REACONDICIONADO

• Socket Intel^® LGA 1700: Listo para procesadores Intel^® de 14^a, 13^a y 12^a Gen.
• Solución de energía mejorada: Conector ProCool de 8 pines, chokes de aleación y capacitores duraderos para una entrega de energía estable.
• Refrigeración completa: Disipador de calor VRM, disipador de calor M.2, disipador de calor PCH, puertos de ventilador híbridos y Fan Xpert 2+.
• Conectividad ultrarrápida: PCIe® 4.0, dos puertos M.2 y USB 3.2 Gen 1 frontal.

Model

PRIME B660M-K D4

CPU

Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memoria

2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Gráficos

1 x HDMI™ 2.0***
1 x D-Sub

1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Support 4K@60Hz as specified in HDMI® 2.1.

Ranuras de expansión

Intel^® Core™ Processors (14^th &13^th & 12^th Gen)

1 x PCIe 4.0/3.0 x16 slot

Intel^® B660 Chipset

2 x PCIe 3.0 x1 slots

Almacenamiento

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Processors (14^th &13^th & 12^th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

Intel^® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

4 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

** Intel^® Rapid Storage Technology supports Intel^® Optane Memory H Series on PCH attached M.2 slots.

USB

Rear USB:Total 6 ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A）

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ALC887/897

Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback»

Audio Features

– Audio Shielding

– Premium audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

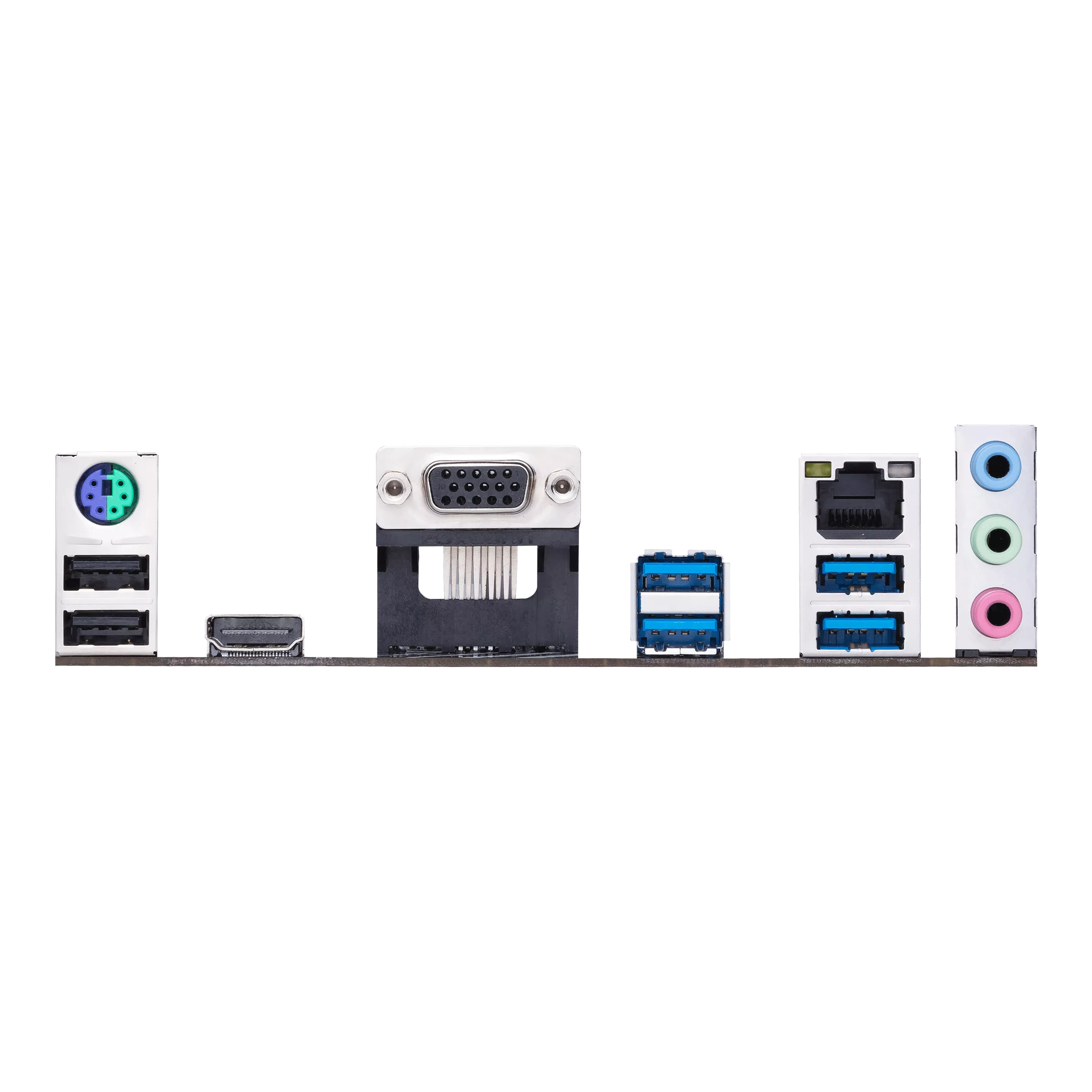

Puertos E/S traseros

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Puertos internos

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Funciones especiales de ASUS

ASUS 5X PROTECTION III

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS EZ DIY

– ProCool

ASUS Thermal Solution

– VRM heatsink design

ASUS Lighting Control

-RGB header

Software

ASUS Exclusive Software

Armoury Crate

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

WOL by PME, PXE

Accesorios

Cables

2x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

2 x M.2 anchors

Installation Media

1 x Support DVD

Documentation

1 x User manual

Sistema operativo

Windows® 11 64-bit
Windows® 10 64-bit
